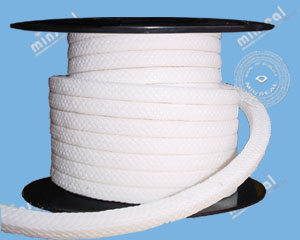

Style 1400 PTFE(Teflon) Packing

1400 PTFE Packing is braided with high purity PTFE(Teflon) filament. It is resilient, chemical resistant, self-lubricating, and withstand high linear speed and pressure with minimum wearing to the shaft. 1400 PTFE Packing can be used in various pumps and valves. It is especially good for corrosive media, high speed application, or applications that require clean and minimum contamination material.

Construction: Interlock Braid

Working Temperature: 540°F, Max. pH: 0-14; Pressure: Up to 2500 psi

Sub-Styles of 1400 PTFE Packing:

Style 1400L PTFE braided packing treated with inert and heat resistant lubricant, the soft version for better performance in pumps.

Style 1400D PTFE braided packing impregnated with PTFE dispersion, no lubricant, the firm version PTFE Packing as static seal for valves, boilers, pressure vessel, etc.

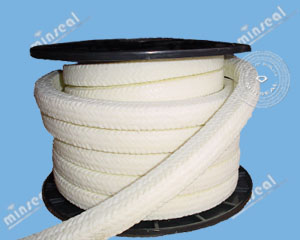

Style 1500 Non-asbestos Synthetic Packing

Braided from synthetic fiber, PTFE impregnated and lubricated. An economical substitute for asbestos packing or PTFE packing.

Construction: Interlock Braid

Working Temperature: 500°F, Max.

pH: 2-12 , Pressure: Up to 3000 psi

Shaft Speed: Up to 2500 feet per minute

Sub-styles of 1500 Packing

1500L Braided synthetic (acrylic) fiber packing, impregnated with PTFE and treated with inert and heat resistant lubricant. This is the soft version of style 1500 packing. Recommended for motion seal in pumps.

1500D Braided synthetic (acrylic) fiber packing, impregnated with PTFE, no lubricant. This is the dry firm version of style 1500 packing for static seal in valves, boilers, pressure vessel, etc.
