CeraTex^® Ceramic Fiber Rope, Braid and Packing

CeraTex^® Ceramic Fiber Rope and Braid are manufactured from high temperature alumino-silicate based refractory fiber, white and odorless. CeraTex rope and braid are lightweight with very low thermal conductivity and excellent insulation values at temperature up to 2300ºF. The products are also chemical resistant, compatable with most corrosive chemicals, commonly used acid and alkali (exceptions are hydrofluoric, phosphoric acids and concentrated alkalis).

Styles in this product family:

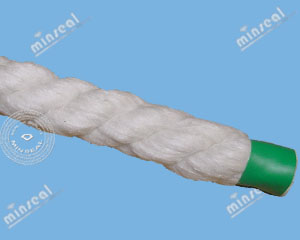

3130 Ceramic Fiber Twisted Rope

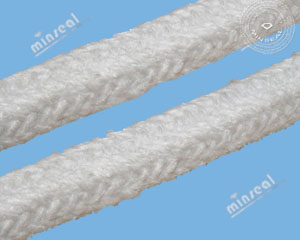

3140 Ceramic Fiber Square Braid

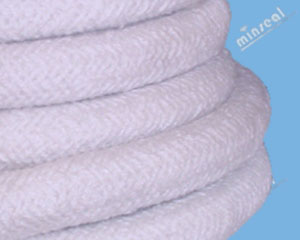

3150 Ceramic Fiber Round Braid

Temperature Rating: 2,300°F.(550°C)

pH Range: 2-12

Available Sizes: 1/4" to 3"

Typical Applications:

• seal or gasket for doors/openings in oven, stove, furnace, boiler;
• expansion joint packing;
• metal casting seal;
• seal or gasket in other high temperature applications.

The products contain certain amount of organic binder materials(necessary for fiber carding process). The organic binder will burn out at lower temperature and generate smokes. This will not affect the ceramic fiber properties. After the organic binder is burned out the product will turn white again. In applications where smoke is prohibited, the product should be heat treated first before it is put into use.
