GraficBraidTM

Graphite Compression Packing

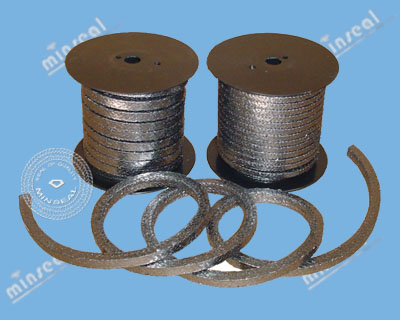

GraficBraidTM is braided from specially treated flexible graphite yarn. This flexible graphite yarn is made from exfoliated high purity crystalline mineral graphite (flake graphite).  It maintains all characteristics of mineral graphite: heat resistant, chemical resistant, resilient, lubricant, pliable, conformable, and thermal conductive.

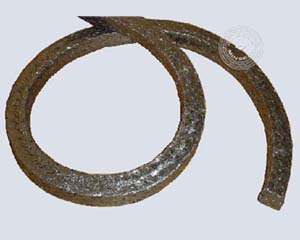

GraficBraid 1000 - Standard Style

Braided from high purity flexible graphite yarn with high temperature inorganic carrier. This is the standard style flexible graphite packing.

Construction: Interlock braid (except small sizes)

Working Temperature:

          Up to 850F if fully expose to air;

          Up to 1800F in steam or other mild oxidation medium;

          Up to 5400F in non-oxidizing media

pH: 0-14                Pressure: Up to 3000 psi              Shaft Speed: Up to 4000 FPM

Application: Pumps and valves, in wide range of temperature, pressure and chemical environment.

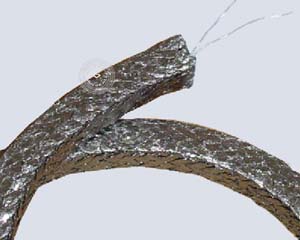

GraficBraid 1000W - Inconel Wire Inserted

GaficBraid1000WBraided from high purity flexible graphite yarn with Inconel Wire insert.

Construction: Interlock braid (except few small sizes)

Working Temperature:

          Up to 850F if fully exposed to air;

          Up to 2000F in steam or other mild oxidation medium

pH: 0-14        Pressure: Up to 4000 psi

Application: Valves, in wide range of temperature, pressure and chemical environment.

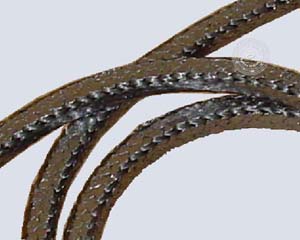

GraficBraid 1000C - With Carbon Corners

GraficBraid 1000C Carbon CornorsBraided with standard flexible graphite yarn on body, and with carbon fiber on corners

Construction: Interlock braid

Working Temperature:

          Up to 850F if fully expose to air;

          Up to 1500F in steam or other mild oxidation medium

pH: 0-14        Pressure: Up to 4000 psi        Shaft Speed: Up to 4000 feet per minute

Application: Pumps and valves, in wide range of temperature, pressure and chemical environment.
